Reclouder can function in many different scenarios. If we would start including all these different types of cables, to price of one Reclouder would raise and you would pay for things you would never use. Therefore the cables are optional and not included.
Here is what you need:
Vocalist/Singer: When you connect Reclouder between the stage microphone and the PA mixer, you will need 1x “XLR-female-to-XLR-male” and 1x “XLR-male-to-XLR-male“ cable. The cable does not have to be too long, since you will mount the Reclouder on the microphone stand and use the original microphone cable as extension.

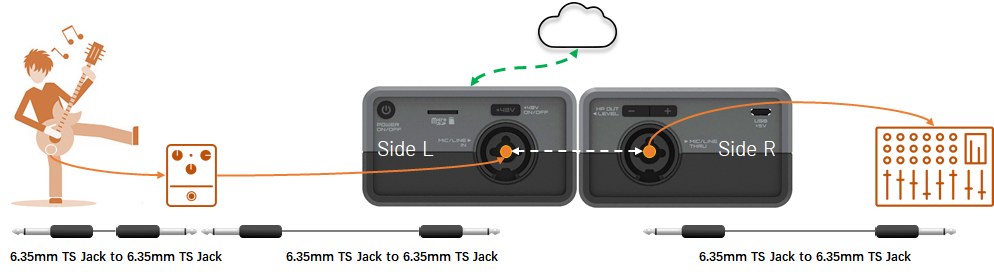

Guitar/Bass: When you connect the Reclouder between the output of an amplifier or effect unit and a PA mixer, you will need 3x “6.35mm-TS Jack-mono” audio cables for connecting the guitar, amp/effector and mixer.
When you connect Reclouder between a microphone in front of the guitar amplifier and a PA mixer, you will need 1x “XLR-female-to-XLR-male” and 1x “XLR-male-to-XLR-male” cable.
Keyboard: When you connect Reclouder between the L/R audio output of a keyboard and a PA mixer, you will need 2x “6.35mm-TS-Jack-double-mono-to-6.35mm-TRS-Jack-stereo-Y-cables”.
Drums: for each microphone it will be similar to connecting Reclouder between a stage microphone and the PA mixer. You will need 1x “XLR-female-to-XLR-male” and 1x “XLR-male-to-XLR-male” cable.

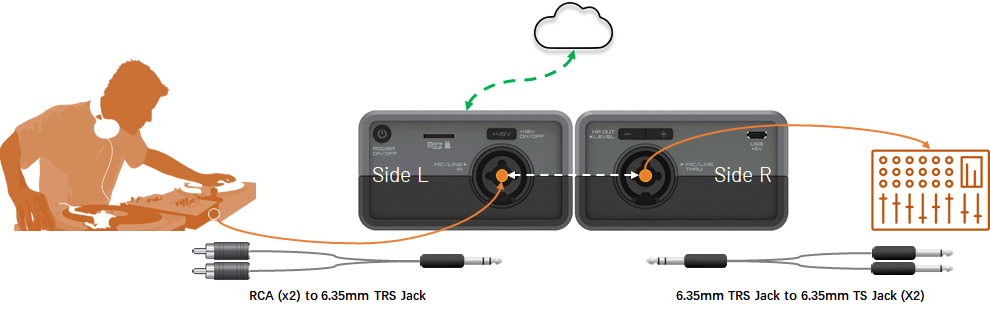

DJ: When you connect Reclouder between the L/R audio output of the DJ mixer and a PA mixer, you will need two Y cables. 1x “RCA-double-mono-to-6.35mm-TRS-Jack-stereo-y-cable” for DJ mixer, and 1x “6.35mm-TRS Jack-to-6.35mm-TS-Jack-double-mono-y-cable”.
Video: When you connect Reclouder between shotgun microphone and camera, you will need 1x “XLR-female-to-XLR-male” cable to connect the mic, and 1x “3.5mm-TRS-Jack-cable” to connect camera mic input for backup recording.
When you use a shotgun mic with Boompole, you will need 2x “3.5mm-TRS-Jack-cables” to connect the mic and camera. Also you can use your headphones to monitor the recording.
When you use a Rode Video Mic or lavalier mics and camera, you will need up to 3x “3.5mm-TRS-Jack” cables.
